Hacking Crappy Kids Toys

June 16, 2020

Every now and then my kids manage to persuade me to bring along comic books for then when I go grocery shopping. I usually pick LEGO magazines since they comic with mini figures or small sets. However, sometimes (usually when specifically instructed by my kids to do so) I have to pick Paw Patrol, Fireman Sam or similar magazines. Those also come with gimmicks that are usually pretty crappy but sometimes can be improved quite nicely.

I already blogged about improving a Fireman Sam toy a while ago.

Starting Point

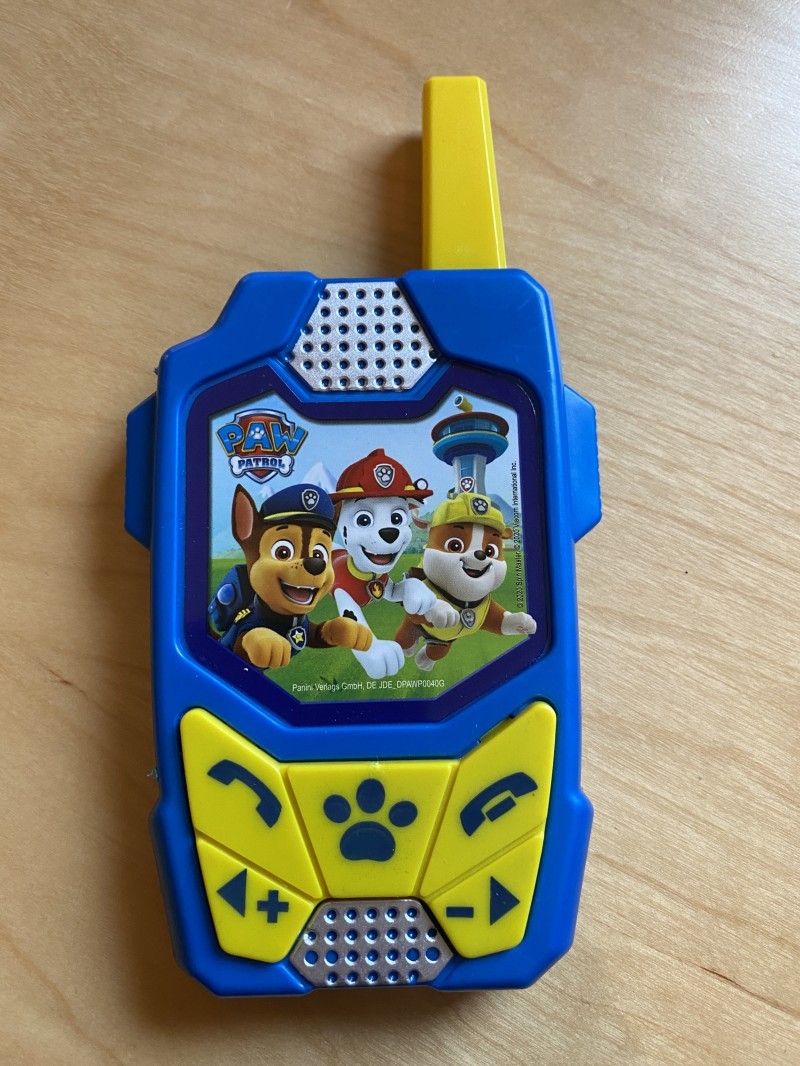

This is what we started with - a empty, boring shell of plastic. "It definitely needs light and sound" my 3-year-old and I established.

The Paw Patrol "Walkie Talkie" (before)

Taking it apart

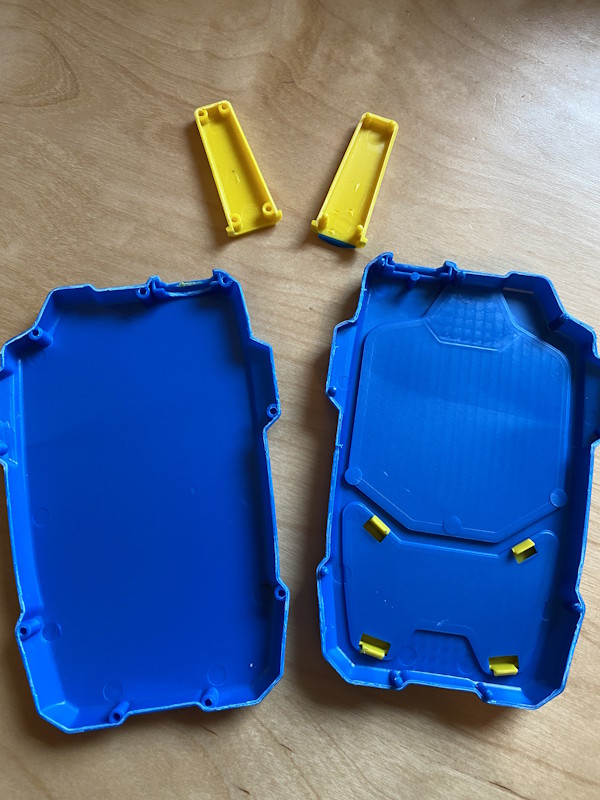

Step 1 - we took the thing apart. Plenty of space to add electronics.

The Paw Patrol "Walkie Talkie" opened up

The Plan

Since we decided to add light* and sound, the first part would be simple. Add an LED - preferably at the tip of the "antenna".

For the sound I google a bit and found this nice schematics of a monotone sound generator based on a 555 timer, a couple of resistors and capacitors - all parts I had readily available:

  • LED (blue)
  • 555 timer chip
  • 10 kΩ resistor
  • 100 kΩ resistor
  • 2 x 0.01 µF ceramic capacitor
  • 100 µF electrolytic capacitor
  • piezo speaker
  • push button
  • 3V coin cell battery and holder

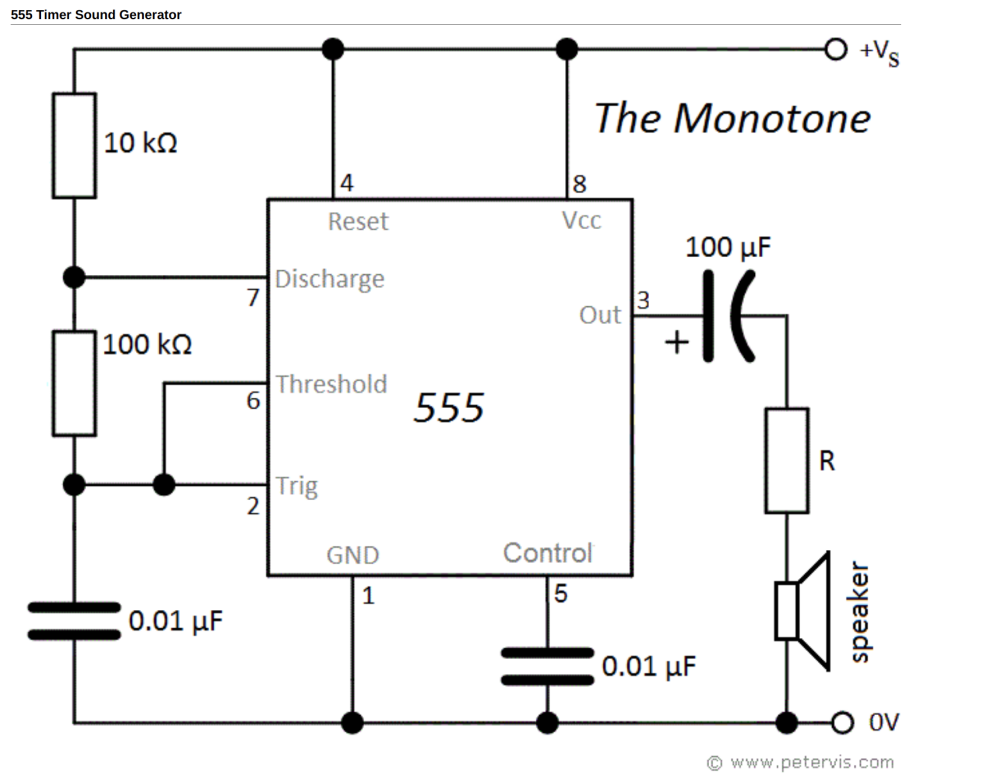

Sound generator schematics

The Prototype

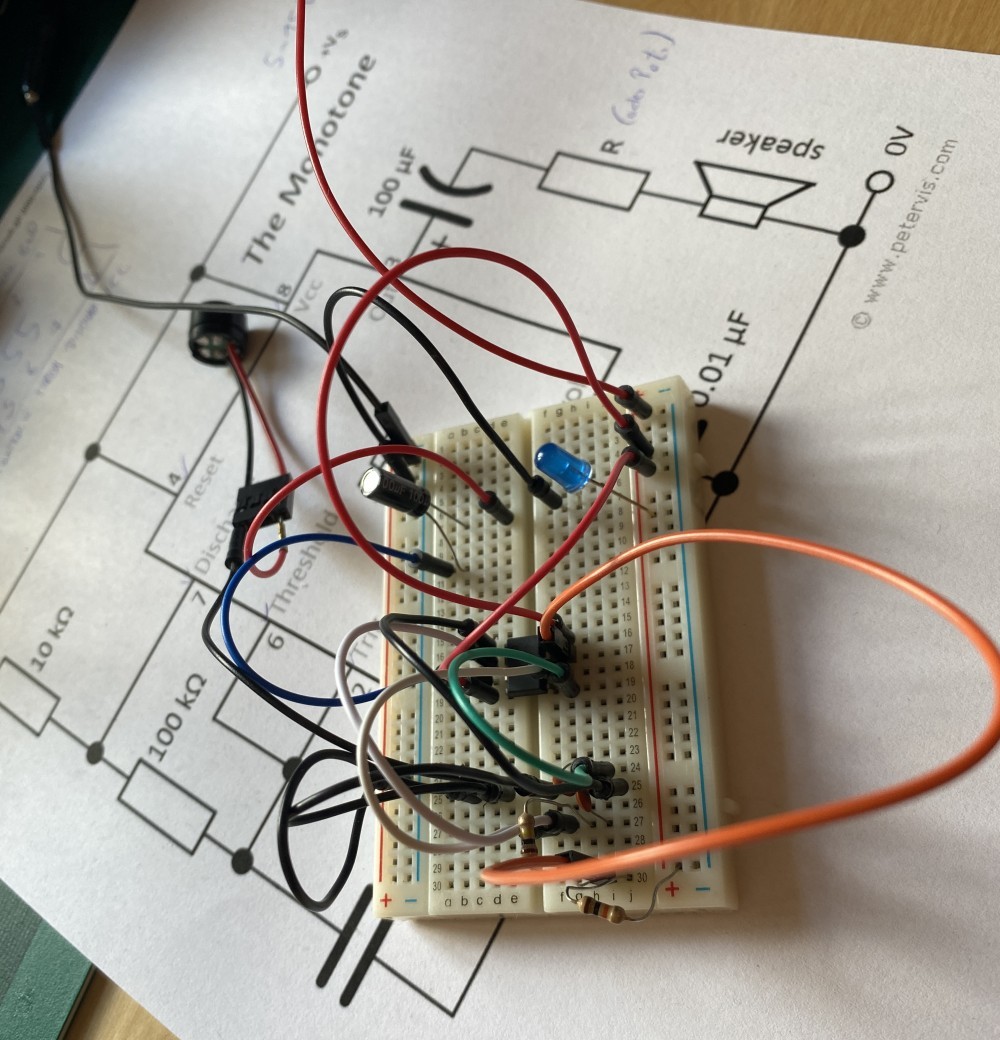

To be safe, I prototyped the sound generator on a breadboard.

The sound generator prototyped on a breadboard

Putting the Parts Together

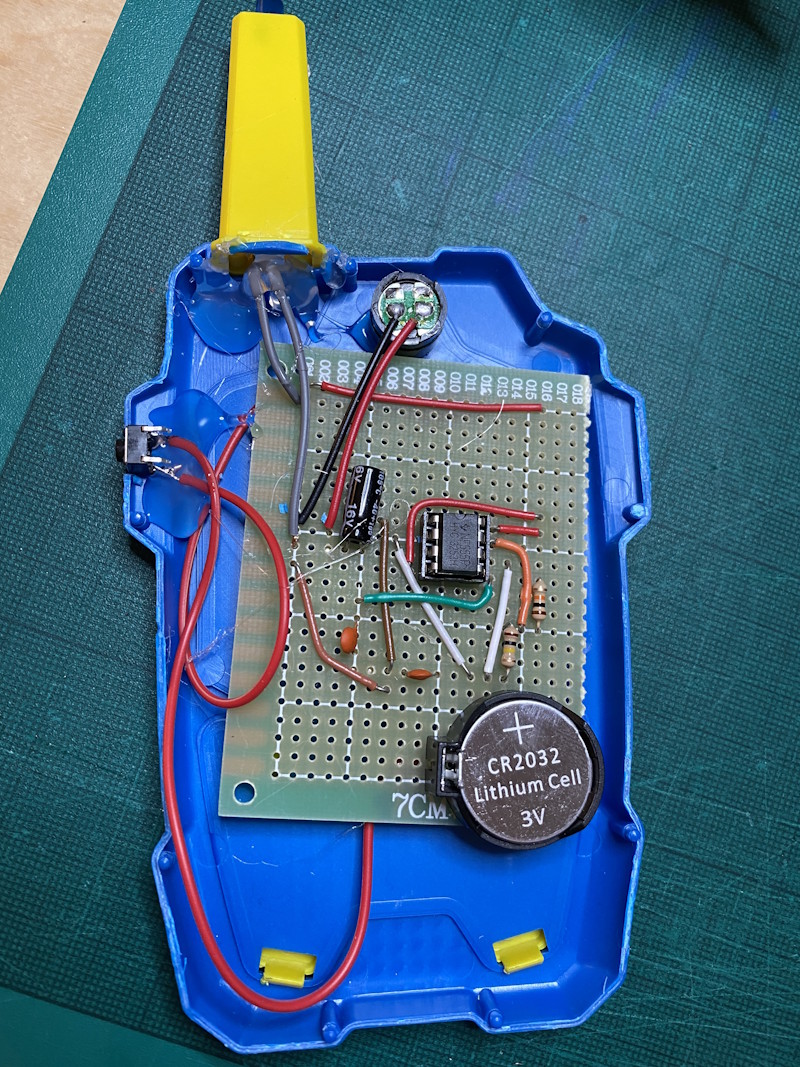

After soldering the components together and hot-glueing the board into the plastic shell, this is what the result looked like.

The improved walkie talkie with light and sound

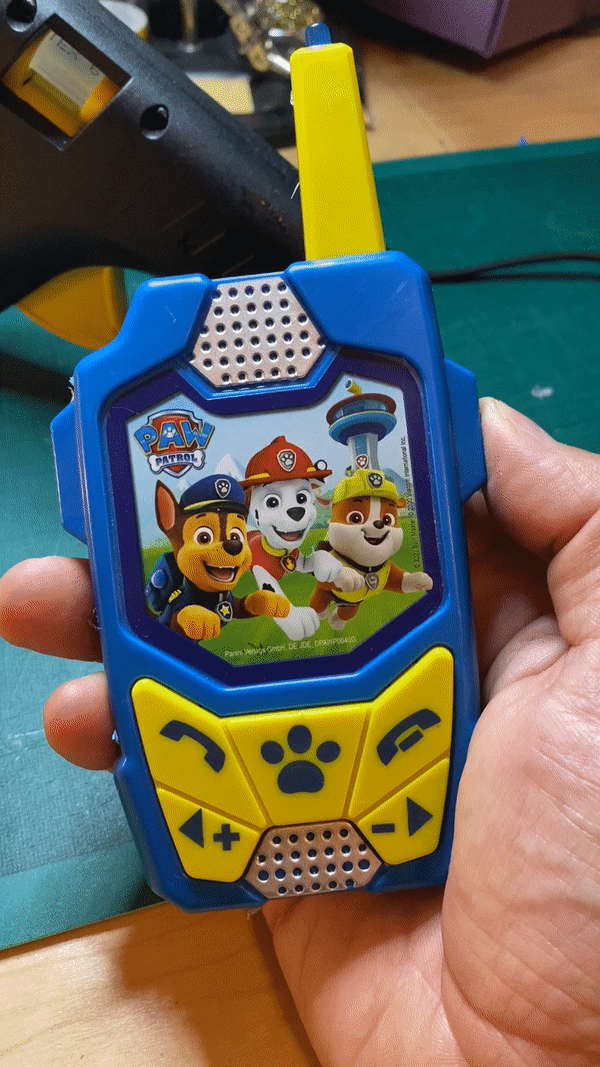

Here's the final result. Sorry, no sound - but be assured: it's really annoying and my kid loves it!

The walkie talkie in action
